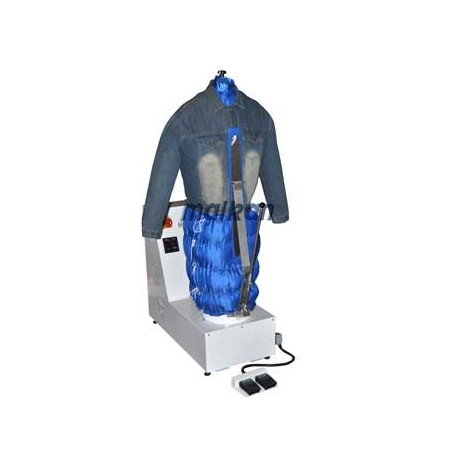

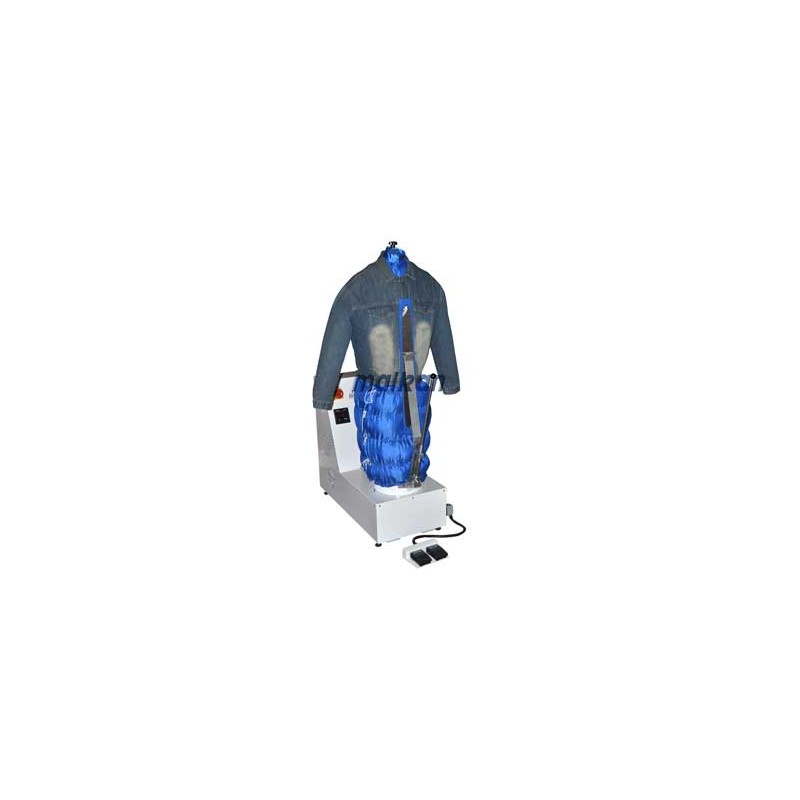

CENTRAL SYSTEM MANNEQIN AIR FORMER

Reference : MSU1

Condition : Nouveau produit

Description :

* Runs with central system steam and 380 V .
* Heated by steam serpentine.
* Adjustable air blowing and steam time.
* Adjustable air flow by flap.
* Optional front pressing apparatus Optional manual mannequin height adjustment

Technical Info

Capacity (pcs/h)	100
Electric (V)	400
Heater Power (kW)
Motor Power (kW)	0,75
Pump Power (kW)
Steam inlet (")	1/2"
Steam Outlet (")	1/2"
Air inlet (")
Vacuum inlet (")
Steam Cosumption (kg/h)	25
Air cosumption (L/min)
Steam Pressure (bar)	4
Air pressure (bar)
Net Weight (kg)	65
Gross Weight (kg)	115
Net Dimensions (cm)	100X48X176
Gross Dimensions (cm)	110X58X186
