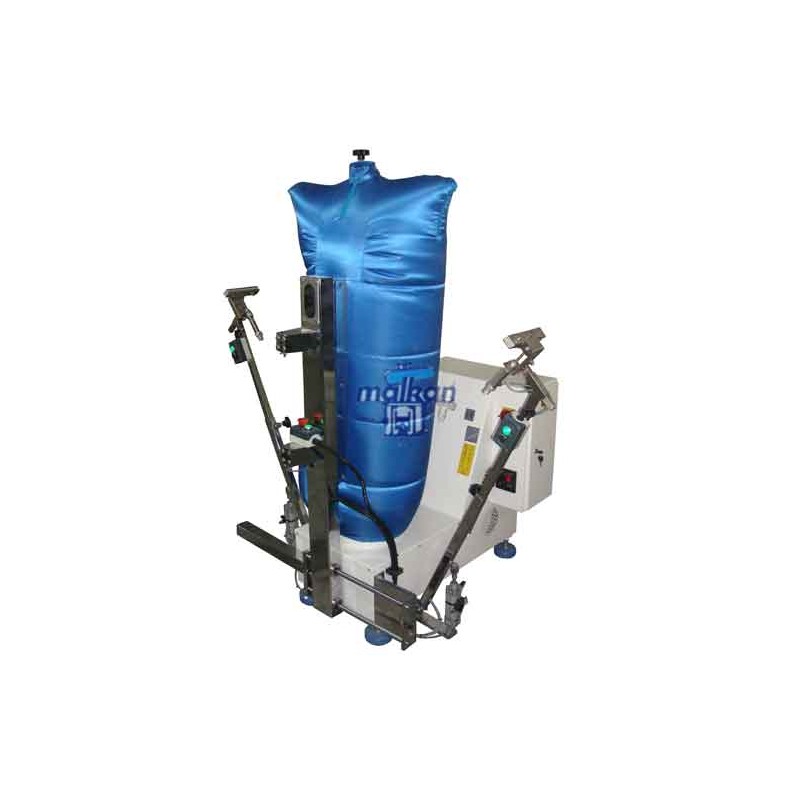

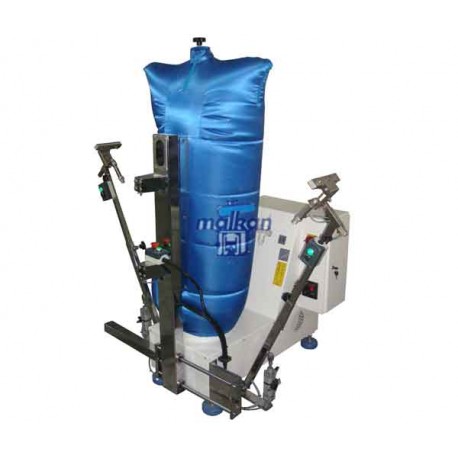

PNEUMATIC MANNEQIN AIR FORMER

Reference : MSUR

Condition : Nouveau produit

Description :

* Runs with central system steam and pressure air and 380 V threephase .
* For toppers such as coats, overcoats, shirts etc.
* Adjustable steam and air blowing time.
* Automatic front presing apparatus and sleeve stretching.
* Adjustable air flow by flap .
* Thermostat controlled front presing apparatus heater.

Technical Info

Capacity (pcs/h)	100
Electric (V)	400
Heater Power (kW)
Motor Power (kW)	0,75
Pump Power (kW)
Steam inlet (")	1/2"
Steam Outlet (")	1/2"
Air inlet (")	1/2"
Vacuum inlet (")
Steam Cosumption (kg/h)	25
Air cosumption (L/min)	3
Steam Pressure (bar)	5
Air pressure (bar)	5
Net Weight (kg)	76
Gross Weight (kg)	120
Net Dimensions (cm)	86X135X177
Gross Dimensions (cm)	96X145X190
