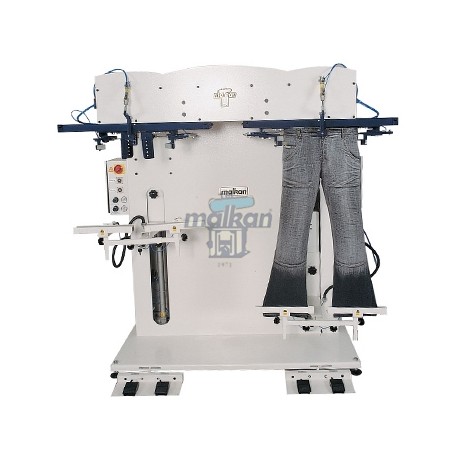

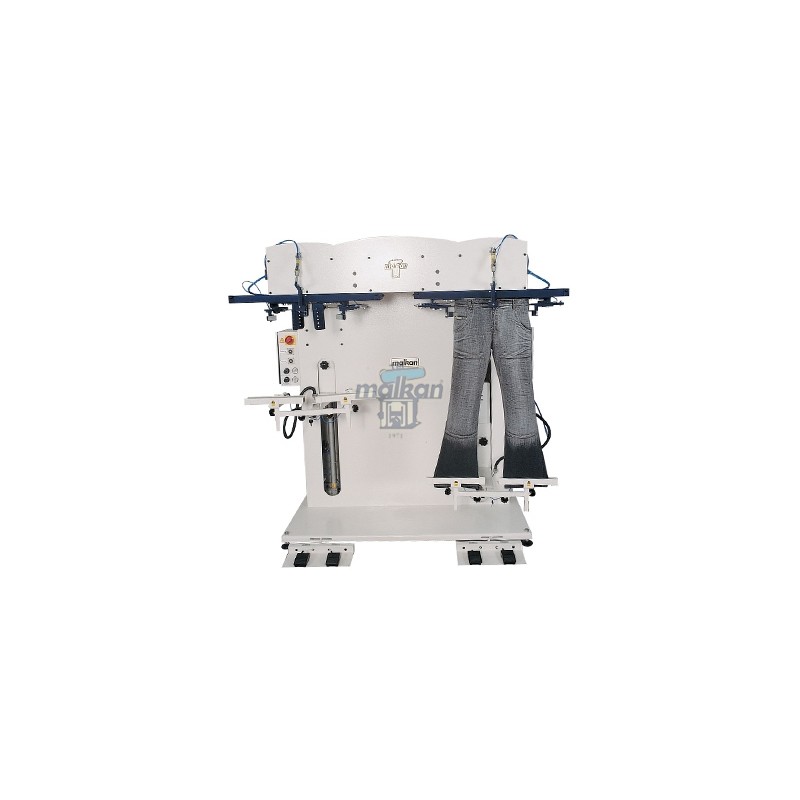

PNEUMATIC TROUSERS TOPPER WITH DOUBLE ROBOTS

PSUR2

Nouveau produit

* Runs with central system steam and pressure air and 380 V.
* Adjustable air blowing and steam time.
* Adjustable stretching for height and waist.
* Pneumatic front and two sides pressing system.
* The body has two seperate finishers for trouser.
* Operator places one trouser, presses start and goes on placing other trouser, this saves labour and time
Technical Info
Capacity (pcs/h) 200
Electric (V) 400
Heater Power (kW)
Motor Power (kW) 2x 0,75
Pump Power (kW)
Steam inlet (") 1/2"
Steam Outlet (") 2X1½"
Air inlet (") Ø8
Vacuum inlet (")
Steam Cosumption (kg/h) 50
Air cosumption (L/min) 43
Steam Pressure (bar) 5
Air pressure (bar)
Net Weight (kg) 380
Gross Weight (kg) 490
Net Dimensions (cm) 75X110X187
Gross Dimensions (cm) 185X120X195
