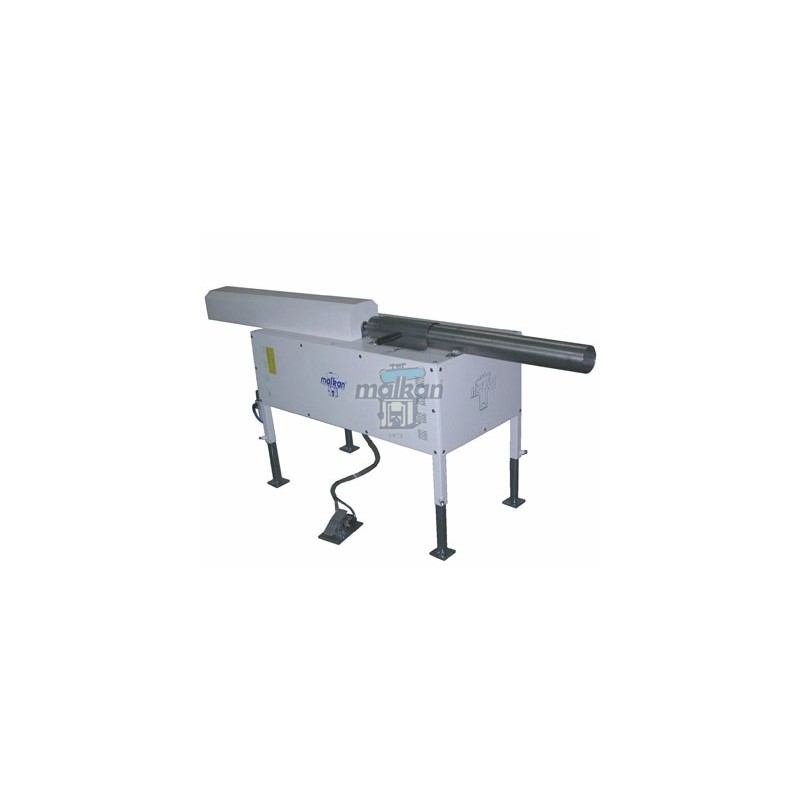

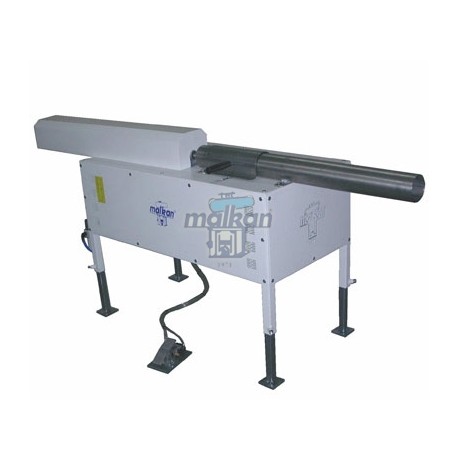

NET WRINKLE MACHINE

FK1

Nouveau produit

* Runs with central system air.
* Used for fast wrinkling of jeans by net.
* Coat or trousers in horizontal pipe is pushed in the net by piston.
* Wrinkle effect is provided by washing process.
* Pipe and working parts are made of stainless steel.
* No need for electricity, runs with only air .
* Pneumatic safety system for operator
Technical Info
Capacity (pcs/h) 75
Electric (V)
Heater Power (kW)
Motor Power (kW)
Pump Power (kW)
Steam inlet (")
Steam Outlet (")
Air inlet (") Ø8
Vacuum inlet (")
Steam Cosumption (kg/h)
Air cosumption (L/min) 20
Steam Pressure (bar)
Air pressure (bar)
Net Weight (kg) 135
Gross Weight (kg) 170
Net Dimensions (cm) 225X71X111
Gross Dimensions (cm) 245X71X121
