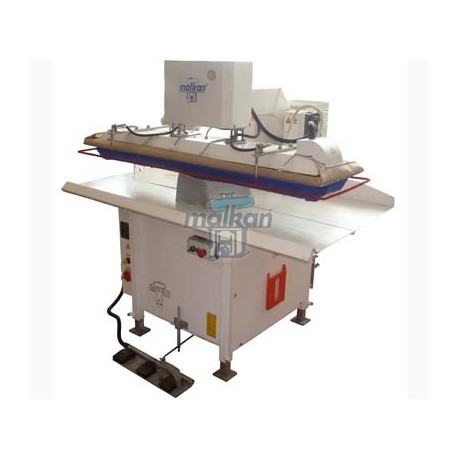

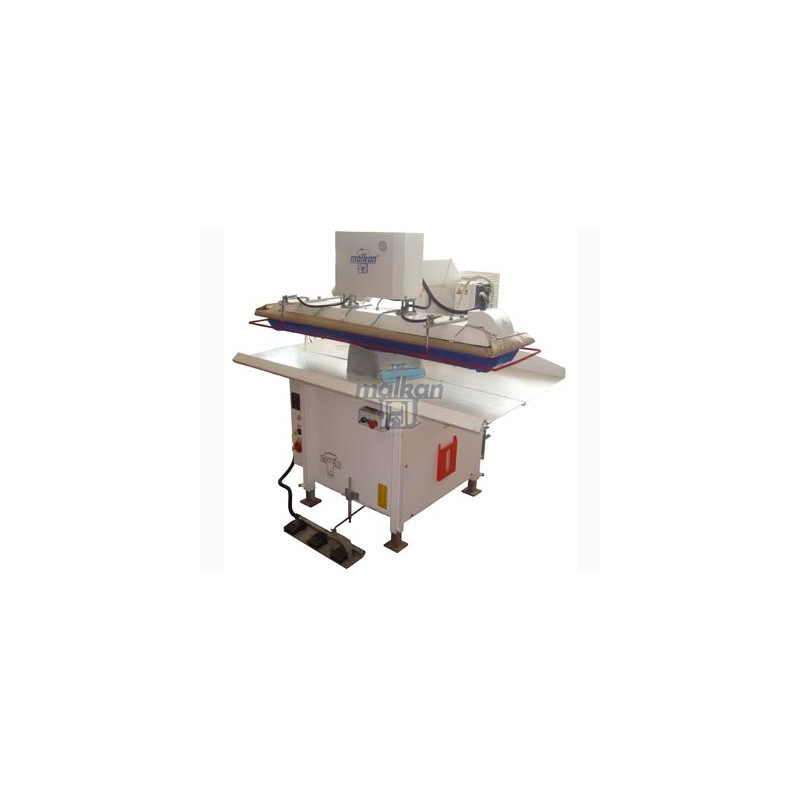

PNEUMATIC TROUSERS WRINKLE PRESS (WITH Single Lower Buck)

Reference : UPP30

Condition : Nouveau produit

Description :

* Central steam, vacuum and air.
* 380V three-phase.
* Used for giving pattern to jeans.
*Head buck made of CrNi stainless steel.
*Steam and electric heated.
*Vacuum and steam from lower buck.
*Time, pressure, vacuum adjustment by microprocessor.

Technical Info

Capacity (pcs/h)	30
Electric (V)	400
Heater Power (kW)	3,7
Motor Power (kW)
Pump Power (kW)
Steam inlet (")	1/2"
Steam Outlet (")	1/2"
Air inlet (")	Ø8
Vacuum inlet (")	1 1/2"
Steam Cosumption (kg/h)	15
Air cosumption (L/min)	20
Steam Pressure (bar)	5
Air pressure (bar)
Net Weight (kg)	420
Gross Weight (kg)	550
Net Dimensions (cm)	160X125X138
Gross Dimensions (cm)	170X135X156
