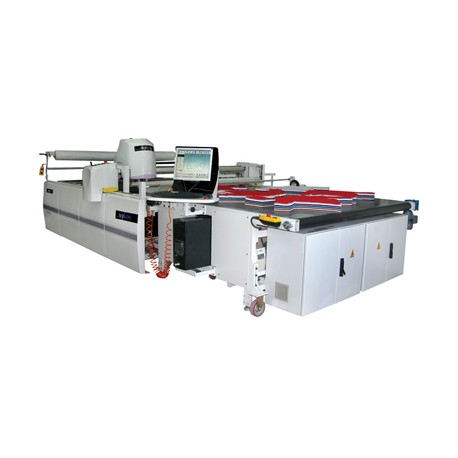

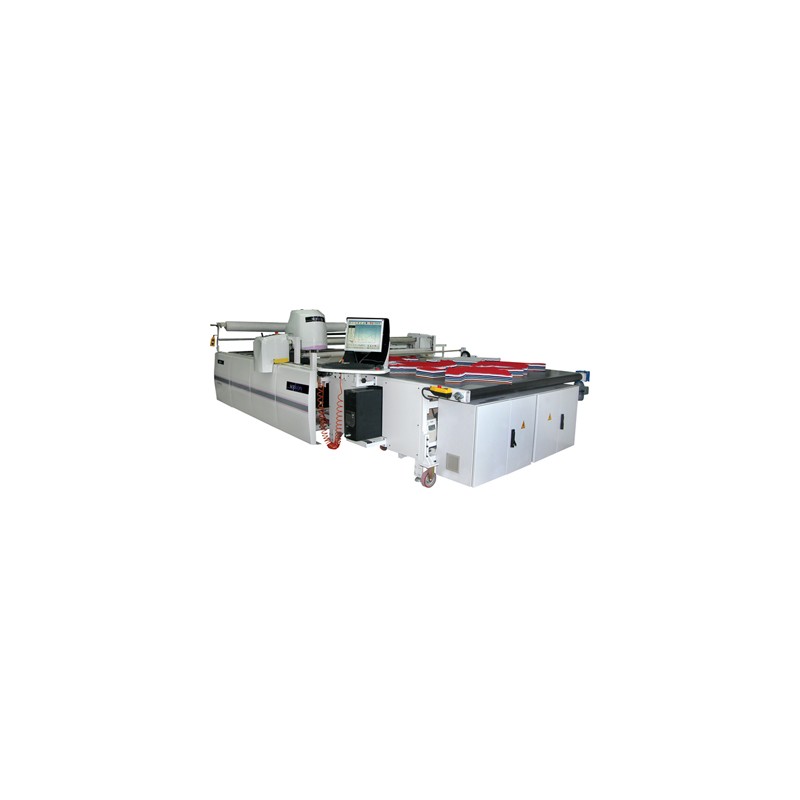

Coupe automatique

Properties - Compatible with all CAD systems

- Accurate cutting with intelligent knife

- With 2 different models upto 6 and 7,5 cms cutting height under vacuum

- Authomatic drill for pens - All parameters can be follawed on screen

- Files can be controlled on screen before cutting

- Possible cutting sequence change for optimization

- Sellecting the pieces which are not to be cut before starting and bypass them during cutting

- Detecting the crossness of the spreaded fabric by laser and cutting it with the same cross angle

- Veriable V and I thinknesses

- When the pieces do not fit the width of the speaded fabrics, operatior may change the scale of the pieces

- Operator may adjust the bite length

- The previously cut files can be saved and recalled with 1 button for cutting again

- If preferred, the knife does not pass through the cutted adjacent linestwice (no overcut)

- Minimum power consumption within same glass machines(15kw) .Automatic knife sharpening

- With monitoring blade system, follows the abrasion of the blade and stops automatically when finished.

- Max 100m/min cutting speed, avarege 20m/min

- The bends of the pieces can be adjusted in any radius

- By hibernate method, can resume cutting after a stoppage

- The productivity can be maximized by adjust the speeding ramps up/down as per the type of the fabric.

Tecnical Detail Cutting height 60 mm 75 mm Cutting speed 100m / dk 100m / dk Vacum power 15kW 15kW Total power 20kW 22kW Sound level <80dbA <80dbA Cutting width A 1850 - 2400mm 1850 - 2400mm
